- Standard rack 6U size design
- Temperature stability is ±0.1℃
- Compressor overload protection
- Flow alarm
- Over-high and over-low temperature alarm
- Liquid level alarm
- High-definition LCD screen display
- Alarm signal output
- RS485 communication (optional)
- AC220V (standard), AC110V/DC24V (optional)
| Product Name | Rack Mounted Chiller | Model | CS-RMC-6U01AC02 |
| Item | Unit | Value | |
| Nominal cooling capacity (@25℃ ambient, 25℃ water) | W | 1300 | |
| Rated Voltage/Hz | V/Hz | 220/50 | |
| Rated Power | W | 1400 | |
| Electric Heating Power | W | 800 | |
| Max Power | W | 2200 | |
| Pump | Head | m | 64 |
| Max Flow | L/min | 33 | |
| Refrigerant | Type | R134a | |
| Water Tank | Volume | L | 3.5 |
| Temperature Setting Range | ℃ | 10~35 | |
| Temperature Stability | ℃ | ±0.1 | |
| Working Temperature | ℃ | 0~45 | |
| Storage Temperature | ℃ | -10~60 | |
| Net Weight | kg | 50 | |
| Circulating Fluid | Water/glycol water | ||
| Inlet/Outlet | G1/2 internal thread | ||
| Chiller size (excluding protrusions) | mm | 650✕482✕267 | |
| Package Size | mm | 750✕520✕360 |

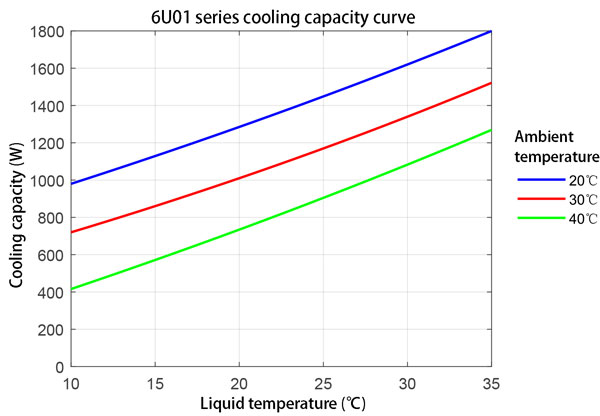

Cooling Capacity Curve

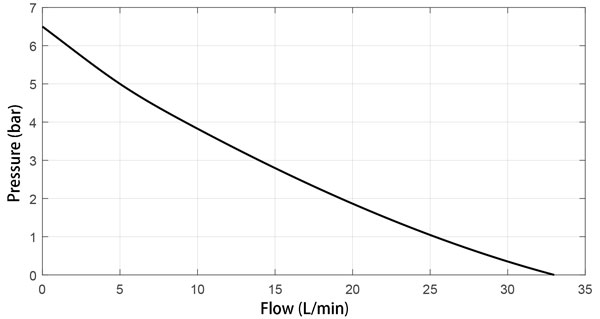

Pump Curve

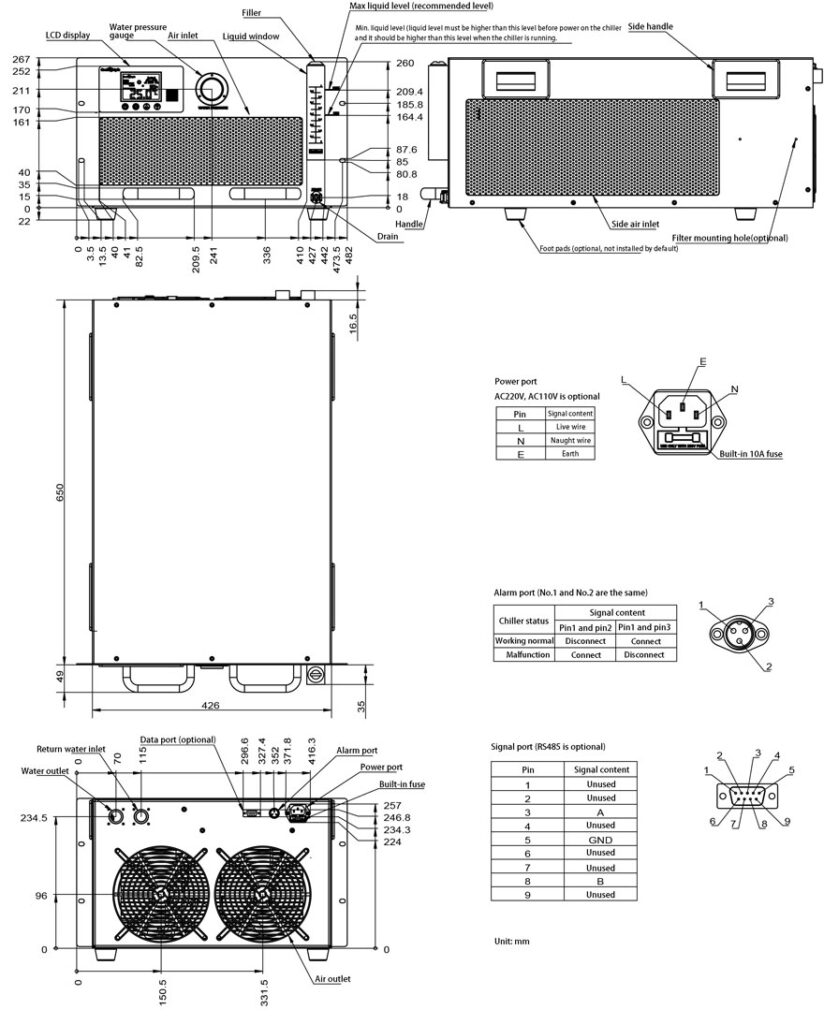

Chiller Structure
