- Standard rack 5U size design
- Temperature stability is ±0.1℃
- Compressor overload protection
- Flow alarm
- Over-high and over-low temperature alarm
- Liquid level alarm
- High-definition LCD screen display
- Alarm signal output
- RS485 communication (optional)
- AC220V (standard), AC110V/DC24V (optional)
| Product Name | Rack Mounted Chiller | Model | CS-RMC-5U03AC01 |
| Item | Unit | Value | |
| Nominal cooling capacity (@25℃ ambient, 25℃ water) | W | 1200 | |
| Rated Voltage/Hz | V/Hz | 220/50 | |
| Rated Power | W | 650 | |
| Electric Heating Power | W | 400 | |
| Max Power | W | 810 | |
| Pump | Head | m | 50 |
| Max Flow | L/min | 24 | |
| Refrigerant | Type | R134a | |
| Water Tank | Volume | L | 1.8 |
| Temperature Setting Range | ℃ | 10~35 | |
| Temperature Stability | ℃ | ±0.1 | |
| Working Temperature | ℃ | 0~45 | |
| Storage Temperature | ℃ | -10~60 | |
| Net Weight | kg | 24 | |
| Circulating Fluid | Water/glycol water | ||
| Inlet/Outlet | Quick plug connector | ||
| Chiller size (excluding protrusions) | mm | 560✕426✕222 | |
| Package Size | mm | 650✕525✕340 |

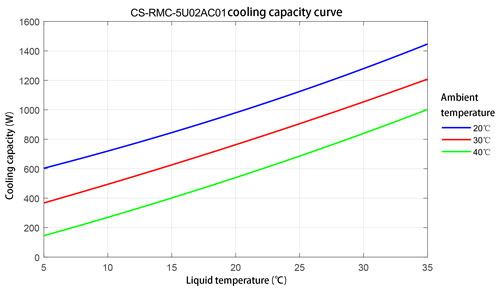

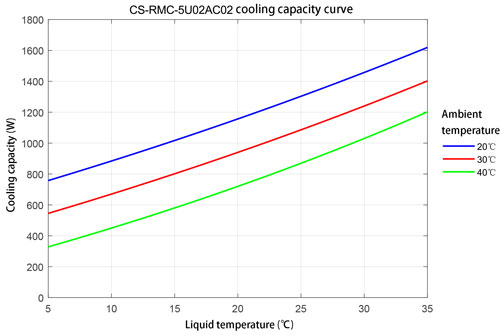

Cooling capacity curve

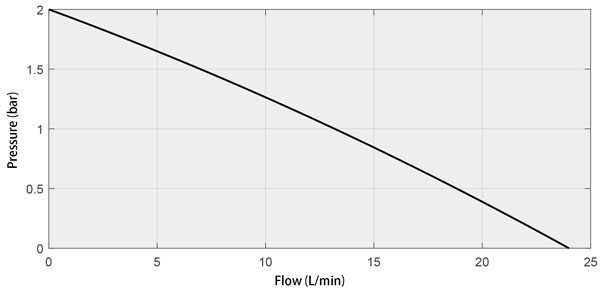

Pump curve

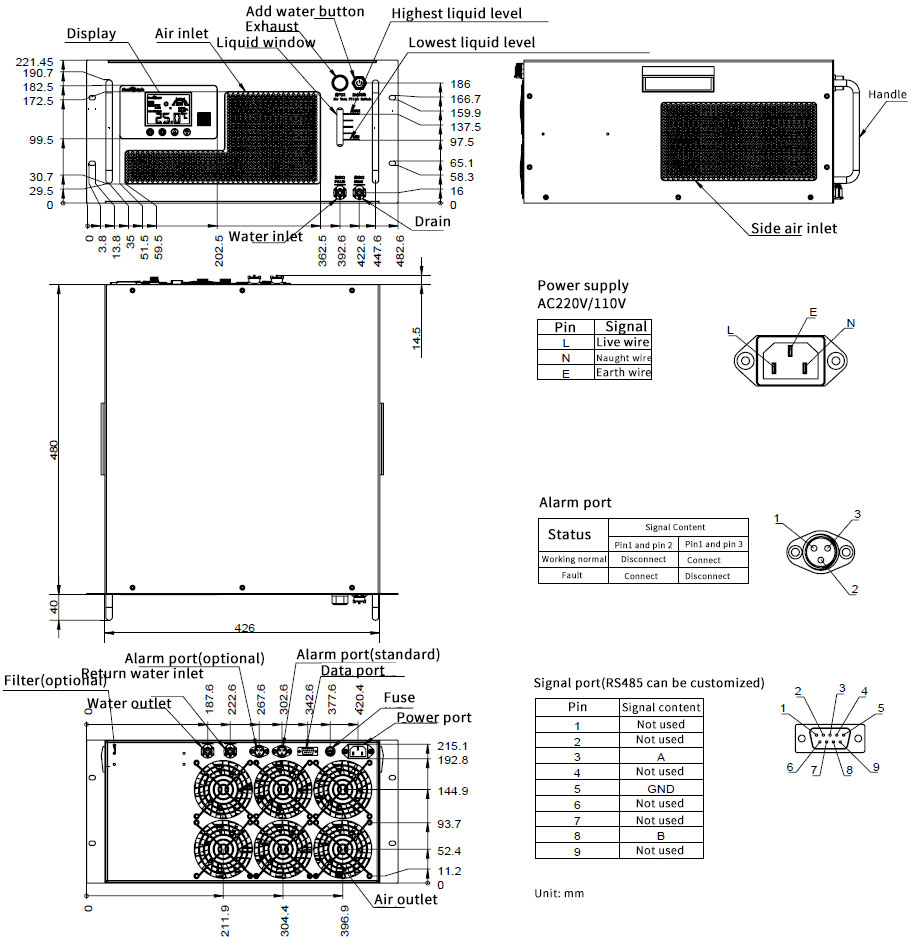

Chiller Structure
